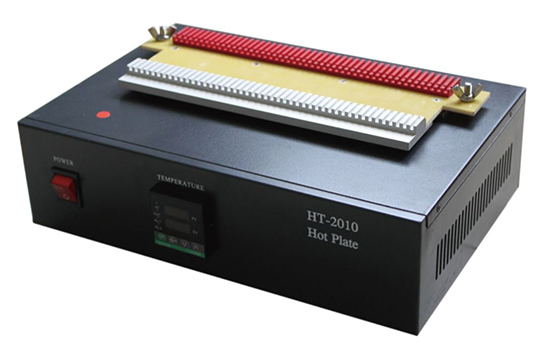

Overview:
The new programmable HT-2010-P30 (Aug 2026) enables stepwise heating for
8208,
8371, 353ND and other adhesives, with up to 30 programmable heating steps, e.g.:
1. Ramp 25→80°C in 5 min.
2. Hold 80°C for 30 min.
3. Ramp 80→100°C in 5 min.
4. Hold 100°C for 10 min.
5. Ramp 100→120°C in 2 min.
6. Hold 120°C for 5 min.
7. Ramp 120→150°C in 3 min.
8. Hold 150°C for 1 min.
9. Cool to 80°C in 10 min.
10. Start next cycle.
Designed for real connector production needs; simple and easy to operate.
Unique horizontal layout lets operators see the working state at a glance.
Can also be used vertically to suit different needs.
Temperature controller offers setpoint, actual reading, PID setting, auto-tune, and measurement-error compensation.
Solid-state relay heating ensures precise control and long life.
Built-in high-temperature protection
Long-life heating elements resist dry burnout.
Innovative insulation separates heating from operating areas for ideal temperatures, operator comfort and safety, and energy savings.
Replaceable curing plates (optional): use two alternately for higher throughput, or choose ferrule or full-component types.
Plate front cures connectors or ferrules; rear has grooves for cable securing.
Optional multi-purpose plate cures one-piece connectors (ST, MT, MT-RJ) or ferrules, up to 20 at once.
Temperature range 50–200°C, accuracy to 0.5°C.
AC 110V version available for the US, Japan, etc.
Manufactured by us: prompt delivery, easy service, great value.
Custom and OEM options welcome.
Choose the HT-2010 curing oven or the programmable HT-2010-P30 to match your needs.

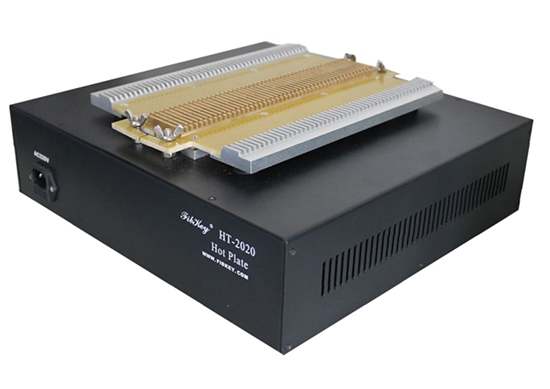

HT-2020/-P30 — cures 92 connectors at once
Overview:
The new programmable HT-2020-P30 (Aug 2026) enables stepwise heating for
8208,
8371, 353ND and other adhesives, with up to 30 programmable heating steps, e.g.:
1. Ramp 25→80°C in 5 min.
2. Hold 80°C for 30 min.
3. Ramp 80→100°C in 5 min.
4. Hold 100°C for 10 min.
5. Ramp 100→120°C in 2 min.
6. Hold 120°C for 5 min.
7. Ramp 120→150°C in 3 min.
8. Hold 150°C for 1 min.
9. Cool to 80°C in 10 min.
10. Start next cycle.
Choose the HT-2020 curing oven or the programmable HT-2020-P30 to match your needs.
